Lei Wang#, Xuetao Shi#, Junliang Zhang, Yali Zhang and Junwei Gu*. Lightweight and robust rGO/sugarcane derived hybrid carbon foams with outstanding EMI shielding performance. Journal of Materials Science & Technology, 2020, 52: 119-126. 2018IF=5.04.（1區材料科學Top期刊，中國科技期刊卓越行動計劃入選項目-重點期刊類項目）
https://doi.org/10.1016/j.jmst.2020.03.029

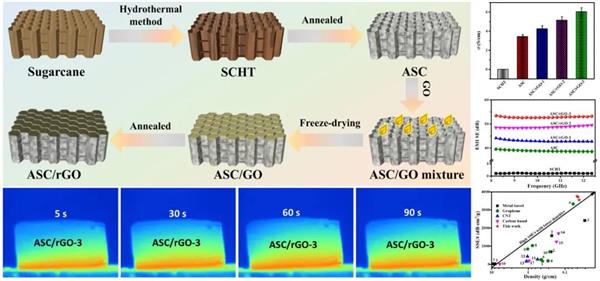

Abstract: Increasingly severe electromagnetic pollution is now in urgent need of materials with lightweight, excellent flame retardancy, and outstanding electromagnetic interference shielding effectiveness (EMI SE). Renewable source-derived carbon foams and graphene have attracted extensive attention due to their 3D porous structure and remarkable electrical conductivity (σ). In this work, annealed sugarcane (ASC) was prepared by removal of lignin from sugarcane via hydrothermal reaction, followed by annealing treatment. Then graphene oxide (GO) was filled by vacuum-assisted impregnation process and thermally annealed to obtain the ASC/reduced graphene oxide (rGO) hybrid foams. When the loading of rGO is 17 wt.%, the ASC/rGO hybrid foam (density, ρ of 0.047 g/cm3) exhibits the optimal σ of 6.0 S/cm, EMI SE of 53 dB, specific SE (SSE = SE/ρ)/thickness (t) of 3830 dB·cm2/g, and compressive strength of 1.33 MPa, which is 76 %, 36 %, 13 % and 6 % higher than those of ASC, respectively. Moreover, ASC/rGO presents excellent flame retardancy, thermal stability, and heat insulation, which remains constant under burning on an alcohol lamp and presents low thermal conductivity of 115.19?mW/(m·K), close to the requirement for heat insulation. Synergistic effect of ASC and rGO not only significantly increase σ of ASC/rGO, but fully utilizes the capability of ASC and rGO to attenuate electromagnetic waves by virtue of unique porous structures and abundant interfaces. Such kind of lightweight EMI materials with excellent mechanical property, shielding performance, flame retardancy, and heat insulation is expected to tackle the key scientific and technical bottleneck problems of EMI materials, and will greatly expand the application of carbon nanomaterials in the field of aerospace industry.
隨著日益嚴重的電磁污染，低密度和高屏蔽效能的屏蔽材料的研發已變得尤為重要。受甘蔗的有序多孔結構啟發，通過水熱反應去除甘蔗中的木質素獲得水熱處理的甘蔗（SCHT）后將其退火，并借助真空輔助浸漬工藝填充氧化石墨烯后進一步熱還原，制備出輕質和高導電的退火甘蔗（ASC）/rGO雜化泡沫。當石墨烯的用量為17wt%時，ASC/rGO-3的密度僅為0.047g/cm3，展現出最大的壓縮強度、電導率、屏蔽效能和比效能/厚度，分別為1.33 MPa、6.04 S/cm-1、53 dB和3830 dB·cm2/g。并且，ASC/rGO-3還具有優異的阻燃性能、熱穩定性和隔熱性能，能夠在酒精燈灼燒下無變化和接近于絕熱要求的熱導率（115.2 mW/(m·K)）。獨特的有序多孔結構和豐富的界面增強了ASC/rGO-3對電磁波的損耗能力，屏蔽機理主要以吸收為主。這種輕質，具有優異的力學性能、屏蔽性能、阻燃性能力和隔熱性能的屏蔽材料將極大地拓展碳納米材料在航空航天工業中的應用。
附第一作者（王雷）個人簡介
王雷，男，陜西商洛人，2018級博士研究生。2016年在西北工業大學獲學士學位，2017年免試攻讀碩士學位并于2018年碩博連讀。主要從事3D MXene泡沫、氣凝膠結構及其環氧樹脂基電磁屏蔽復合材料的制備及機理研究。參與航天科學技術基金2項和校研究生種子基金2項。2018~2019學年博士研究生國家獎學金獲得者。在Carbon、Composites Part B: Engineering和Journal of Materials Science & Technology等期刊發表SCI論文15篇，其中第一作者（含導師第一）SCI論文5篇。SCI引用650余次（入選第一作者ESI熱點論文2篇、高被引論文2篇），H因子11；參加國際會議3次并作口頭報告；授權、公開國家發明專利8件。
