Junwei Gu*, Yang Li, Chaobo Liang, Yusheng Tang, Lin Tang, Yikun Zhang, Jie Kong, Hu Liu and Zhanhu Guo*. Synchronously improved dielectric and mechanical properties of wave-transparent laminated composites combined with outstanding thermal stability by incorporating iysozyme/POSS functionalized PBO fibers. Journal of Materials Chemistry C, 2018, 6(28): 7652-7660. 2017IF=5.976. (1區(qū)/Top期刊：工程技術(shù)領(lǐng)域頂尖期刊).

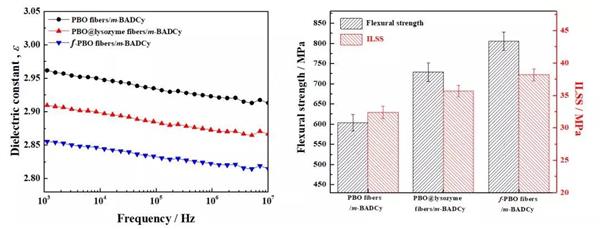

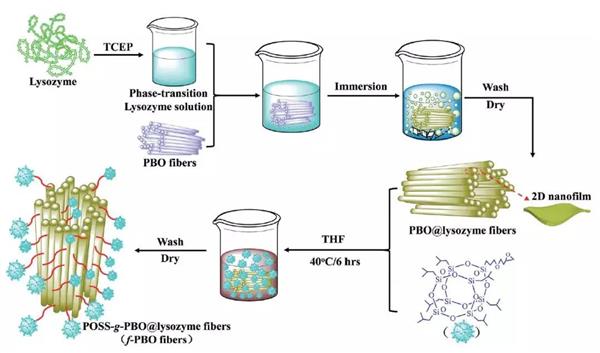

Abstract：Modified bisphenol A dicyanate ester (m-BADCy) wave-transparent laminated composites reinforced with functionalized poly(p-phenylene-2,6-benzobisoxazole) (f-PBO) fibers were fabricated using an optimized method of impregnation-winding followed by lamination-molding. m-BADCy was synthesized from copolymerization between (2-((3-trifluoromethyl)phenoxy)methyl)oxirane and the BADCy matrix. f-PBO fibers were obtained by modifying with lysozyme followed by polyhedral oligomericsilsesquioxane (POSS). Lysozyme was coated on the surface of PBO fibers (PBO@lysozyme) and polyhedral oligomericsilsesquioxane (POSS) was grafted onto the PBO@lysozyme fibers (POSS-g-PBO@lysozyme, f-PBO fibers). The dielectric constant (ε), 2.81, and dielectric loss (tan?δ), 0.0028, for f-PBO fiber/m-BADCy wave-transparent laminated composites were lower than those of PBO fiber/m-BADCy wave-transparent laminated composites (ε = 2.91 and tan?δ = 0.0043). The interlaminar shear strength (ILSS) and the flexural strength of the f-PBO fiber/m-BADCy wave-transparent laminated composites were significantly increased to 47.6 and 805.8 MPa, increased by 23.0% and 33.5% in comparison to those of PBO fiber/m-BADCy wave-transparent laminated composites (ILSS = 38.7 MPa and flexural strength = 603.5 MPa), respectively. In addition, the corresponding heat resistance index (THRI, representing thermal stability) and glass transition temperature (Tg) of the f-PBO fiber/m-BADCy wave-transparent laminated composites were 228.3 and 252.1 °C, respectively.
附論文鏈接：
http://pubs.rsc.org/en/content/articlelanding/2018/tc/c8tc02391c#!divAbstract
